-, Sudarsono (2018) Analisis Stress Corrosion Cracking Sambungan Las Aluminium Sebelum dan Sesudah Stress Relieving. Sarjana thesis, Universitas Brawijaya.
Abstract
Perkembangan industri di berbagai sektor terus meningkat seiring dengan kemajuan teknologi. Tidak dapat dipungkiri, ilmu logam dan pengelasan modern memegang peranan penting dan menjadi wujud perkembangan teknologi perindustrian yang sangat esensial untuk beberapa abad terakhir. Namun disamping berbagai kelebihan yang dimiliki, ilmu logam maupun pengelasan memiliki permasalahan besar yang wajib untuk diperhatikan dalam dunia perindustrian, yakni kerentanannya terhadap fenomena Stress Corrosion Cracking (SCC). SCC diakibatkan oleh adanya kombinasi yang berkesinambungan antara korosi dan tegangan. SCC merupakan salah satu permasalahan terbesar dalam dunia industri saat ini, fenomena ini tidak hanya merugikan secara materi namun juga nyawa. Tegangan yang mempengaruhi SCC tidak hanya berasal dari luar sistem benda namun juga daripada benda itu sendiri, seperti tegangan sisa. Besarnya tegangan sisa bahkan dapat menyamai nilai tegangan luluh suatu material, hal ini menggambarkan besarnya peran tegangan sisa dalam memicu SCC. Maka dari itu diperlukan usaha untuk menghilangkan tegangan sisa tersebut, salah satunya ialah dengan perlakuan stress relieving. Pada penelitian ini digunakan jenis material aluminium, jenis pengelasan Gas Tungsten Arc Welding (GTAW), serta jenis larutan korosif HCl 1M, dimana terdapat tiga variabel bebas, yakni spesimen aluminium tanpa pengelasan (A), spesimen aluminium dengan pengelasan (WA), dan spesimen aluminium dengan pengelasan dan perlakuan stress relieving (SR). Penelitian dilakukan dengan pemberian beban konstan sebesar 25 kg, 30 kg, 35 kg, 40 kg, 45 kg, dan 50 kg pada setiap spesimen uji yang mana bertujuan untuk mengetahui nilai tegangan ambang serta karakteristik masing-masing spesimen uji pada lingkungan SCC. Daripada penelitian ini didapatkan hasil sebagai berikut; Nilai tegangan ambang spesimen uji A, WA, dan SR secara berurutan ialah 30.454 MPa, 20.648 MPa, dan 25.551 MPa, serta karakteristik KIC dan KISCC ialah >29.494 MPa√
English Abstract
Industrial developments in various sectors continue to increase along with technological advances. It is undeniable that metal science and modern welding play an important role and become a very important form of industrial technology development for the last few centuries. But in addition to the various advantages possessed, metal science and welding has a big problem that must be considered in the world of industry, namely its vulnerability to the phenomenon of Stress Corrosion Cracking (SCC). SCC is caused by a continuous combination of corrosions and stresses. Today SCC is one of the biggest problems in the world of industry, this phenomenon is not only harmfully materially but also life. The stress that affects SCC is not only from outside the system of objects but also of the object itself, like residual stress. The magnitude of residual stress can even match the yield stress value of a material, this represents the magnitude of the residual stress role in triggering the SCC. Therefore, it will take an effort to remove the residual stress, which likes stress relieving heat treatment. In this research, researcher used aluminium as the type of specimen’s material, the type of welding was Gas Tungsten Arc Welding (GTAW), as well as the type of corrosive solution was HCl 1M, where there were three independent variables; Aluminum specimens without any welded joint and any heat treatment (A), welded aluminum specimens (WA), and welded aluminum specimens with a stress relieving treatment on its joint (SR). The study was carried out by giving a constant load of 25 kg, 30 kg, 35 kg, 40 kg, 45 kg, and 50 kg on each test of each specimen which aims to know the value of threshold stress and the SCC environment characteristics of each specimen. Rather than this research, the following results are obtained; The threshold stress values of specimens A, WA and SR, respectively, are 30,454 MPa, 20,648 MPa, and 25,551 MPa, and the SCC environment characteristics of KIC and KISCC, respectively, are >29,494 MPa√m and 18,512 MPa√m, 31,043 MPa√m and 13,889 MPa√m , and 33.43 MPa√m and 16,933 MPa√m.
| Item Type: | Thesis (Sarjana) |
|---|---|
| Identification Number: | SKR/FT/2018/235/051802068 |
| Uncontrolled Keywords: | Stress Corrosion Cracking, Tegangan Ambang, Faktor Intensitas Tegangan, Aluminium, Pengelasan, Tegangan Sisa, dan Stress Relieving |
| Subjects: | 600 Technology (Applied sciences) > 671 Metalworking Processes and primary metal products > 671.5 Joining and cutting of metals > 671.52 Welding |
| Divisions: | Fakultas Teknik > Teknik Mesin |
| Depositing User: | Budi Wahyono Wahyono |
| Date Deposited: | 27 Mar 2018 06:50 |
| Last Modified: | 19 Oct 2021 03:53 |
| URI: | http://repository.ub.ac.id/id/eprint/9019 |
Preview |
Text

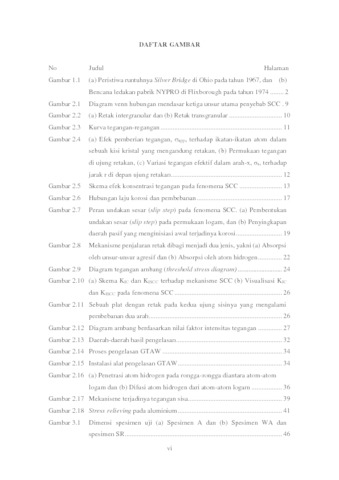

10. Daftar Gambar.pdf Download (115kB) | Preview |
Preview |
Text

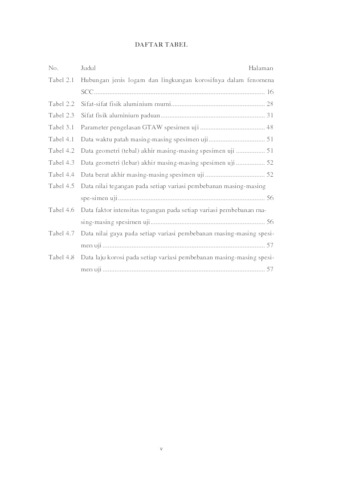

9. Daftar Tabel.pdf Download (31kB) | Preview |
Preview |
Text
13. BAB I Pendahuluan (Word).pdf Download (134kB) | Preview |
Preview |
Text
12. Ringkasan + Summary.pdf Download (120kB) | Preview |
Preview |
Text

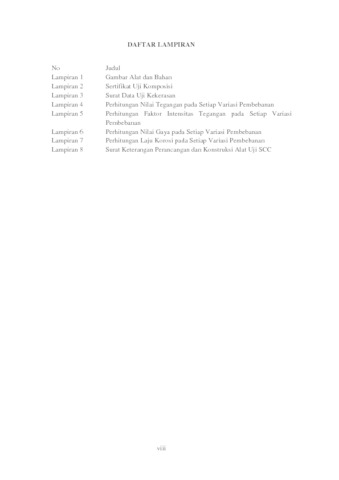

11. Daftar Lampiran.pdf Download (30kB) | Preview |
Preview |
Text

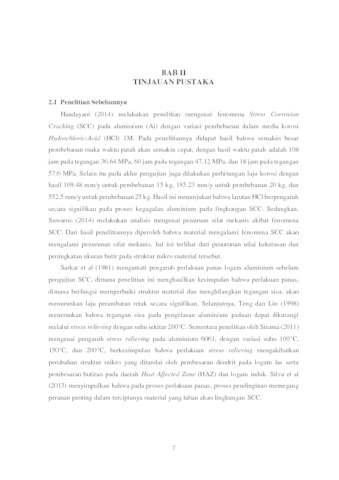

14. BAB II Tinjauan Pustaka (Word).pdf Download (753kB) | Preview |
Preview |
Text

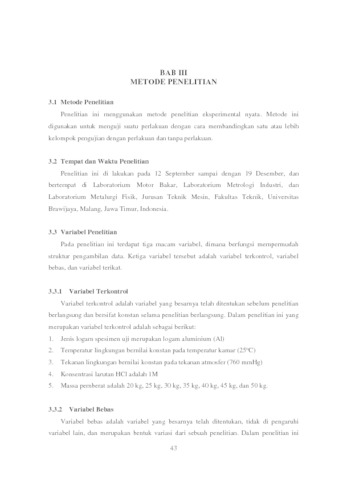

15. BAB III Metode Penelitian (Word).pdf Download (135kB) | Preview |
Preview |
Text

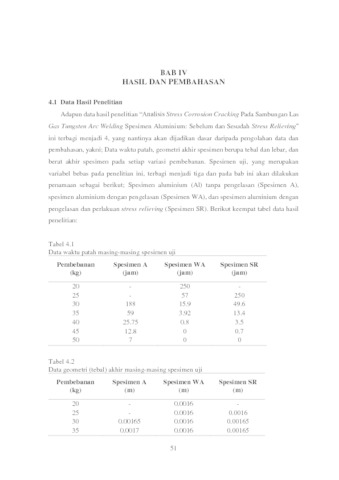

16. BAB IV Hasil dan Pembahasan (Word).pdf Download (681kB) | Preview |
Preview |
Text

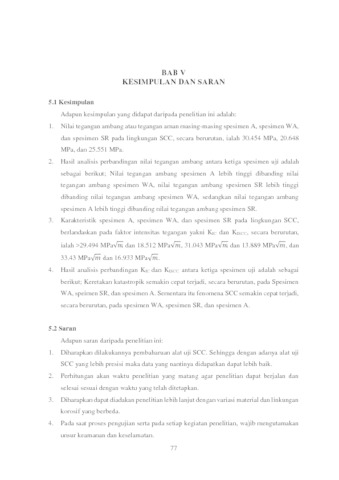

17. BAB V Kesimpulan dan Saran (Word).pdf Download (38kB) | Preview |
Preview |
Text

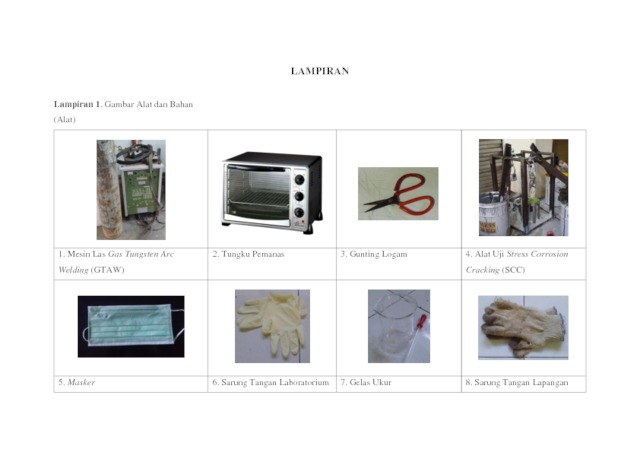

19. Lampiran.pdf Download (1MB) | Preview |
Preview |
Text
18. Daftar Pustaka.pdf Download (95kB) | Preview |
Preview |
Text
1. Cover Skripsi.pdf Download (41kB) | Preview |
Preview |
Text
2. Lembar Pengesahan.pdf Download (23kB) | Preview |
Preview |
Text
3. SK Penguji.pdf Download (14kB) | Preview |
Preview |
Text
4. Pernyataan Orisinalitas.pdf Download (29kB) | Preview |
Preview |
Text
6. Lembar Peruntukan.pdf Download (29kB) | Preview |
Preview |
Text
7. Kata Pengantar.pdf Download (127kB) | Preview |
Preview |
Text

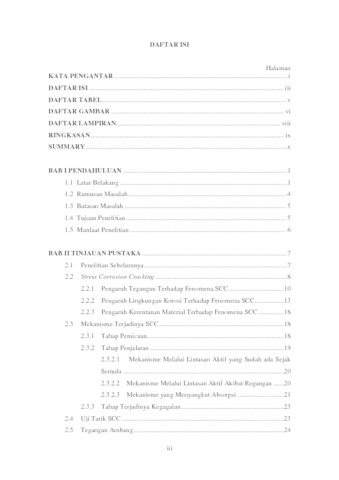

8. Daftar Isi.pdf Download (42kB) | Preview |
Actions (login required)
 |
View Item |
