Adhiyasa, Yoga (2018) Pengontrolan Ketinggian Level Air Pada Miniatur Pintu Bendung Berbasis Mikrokontroler. Sarjana thesis, Universitas Brawijaya.
Abstract
Bendungan adalah kontruksi yang dibangun untuk menahan laju air. Bendung adalah bangunan yang dibangun secara melintang agar permukaan air sungai di sekitarnya naik sampai ketinggian tertentu. Kemudian air sungai dapat dialirkan melalui pintu sadap ke saluran-saluran pembagi kemudian hingga ke lahan-lahan pertanian. Dalam penggunaannya sering terjadi penggerusan dinding bendungan akibat derasmya aliran banjir akibat tekanan yang sangat besar yang masuk ke dalam bendungan. Seiring dengan perkembangan teknologi, dibuatlah suatu alat yang dilengkapi dengan sistem pengontrolan level ketinggian air pada pintu bendung guna mengatur ketinggian air dalam bendung. Pengontrolan dilakukan dengan cara mengatur kecepatan buka tutup pintu air agar ketinggian air pada bendung tetap stabil menggunakan kontroler PID. Pada
English Abstract
Dam is construction builded for to hold water flow Weir is construction builded across the river, in order the surface of river water rises up to certain high.Then, the river water can be flowed to door filter and it is continued to streams until came in the farm field. Frequently,the use of dam was eroded by the flow of flood due to the high flow water inside dam. As long as technological devolepment it is tool made completed controlling water level system to control dam water level. The controlling speed is done by open and close the water gate in order the water level become stable by using PID controller By using the PID Controller, the parameter values obtained is Kp= 14.4, Ki= 1.8, and Kd = 28.8, where the value of these parameter is used to speed up the system to achieve a state in base on the set point Steady State.
| Item Type: | Thesis (Sarjana) |
|---|---|
| Identification Number: | SKR/FT/2018/183/051802034 |
| Uncontrolled Keywords: | Miniatur pintu bendung, Level air, Kontroler PID, Ziegler Nichols 1 |
| Subjects: | 600 Technology (Applied sciences) > 621 Applied physics > 621.3 Electrical, magnetic, optical, communications, computer engineering; electronics, lighting > 621.31 Generations, modification, storage, transmission of electric power |
| Divisions: | Fakultas Teknik > Teknik Elektro |
| Depositing User: | Budi Wahyono Wahyono |
| Date Deposited: | 23 Apr 2018 00:27 |
| Last Modified: | 19 Oct 2021 02:22 |
| URI: | http://repository.ub.ac.id/id/eprint/9686 |
Preview |
Text

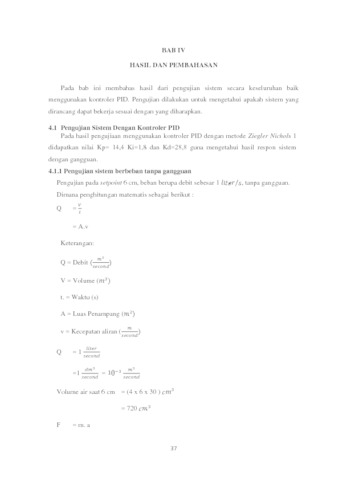

BAB IV.pdf Download (413kB) | Preview |
Preview |
Text

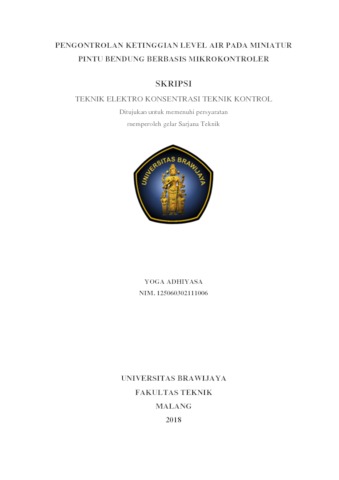

BAGIAN DEPAN.pdf Download (879kB) | Preview |
Preview |
Text

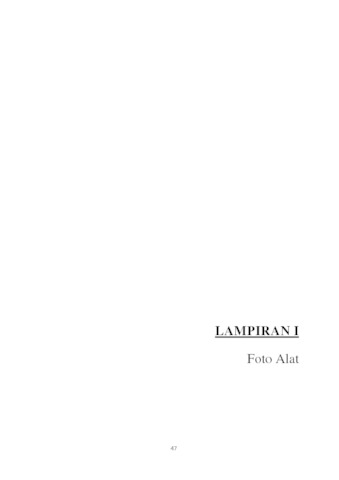

Lampiran.pdf Download (520kB) | Preview |
Preview |
Text
BAB V.pdf Download (266kB) | Preview |
Preview |
Text

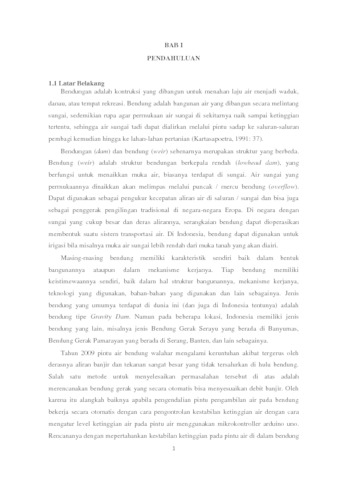

BAB I.pdf Download (270kB) | Preview |
Preview |
Text

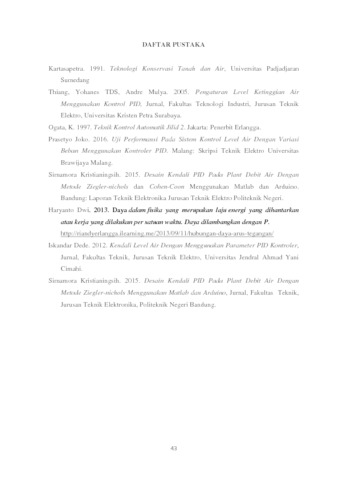

Daftar Pustaka.pdf Download (151kB) | Preview |
Preview |
Text
BAB II.pdf Download (1MB) | Preview |
Preview |
Text

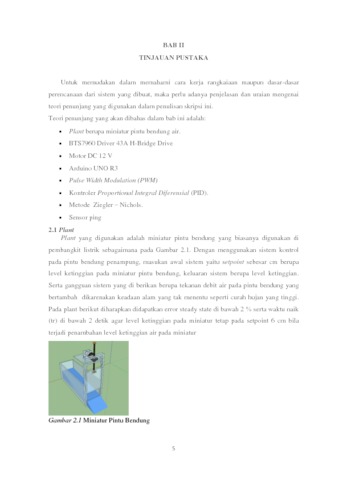

BAB III.pdf Download (1MB) | Preview |
